DOUBLE POLE SERIES

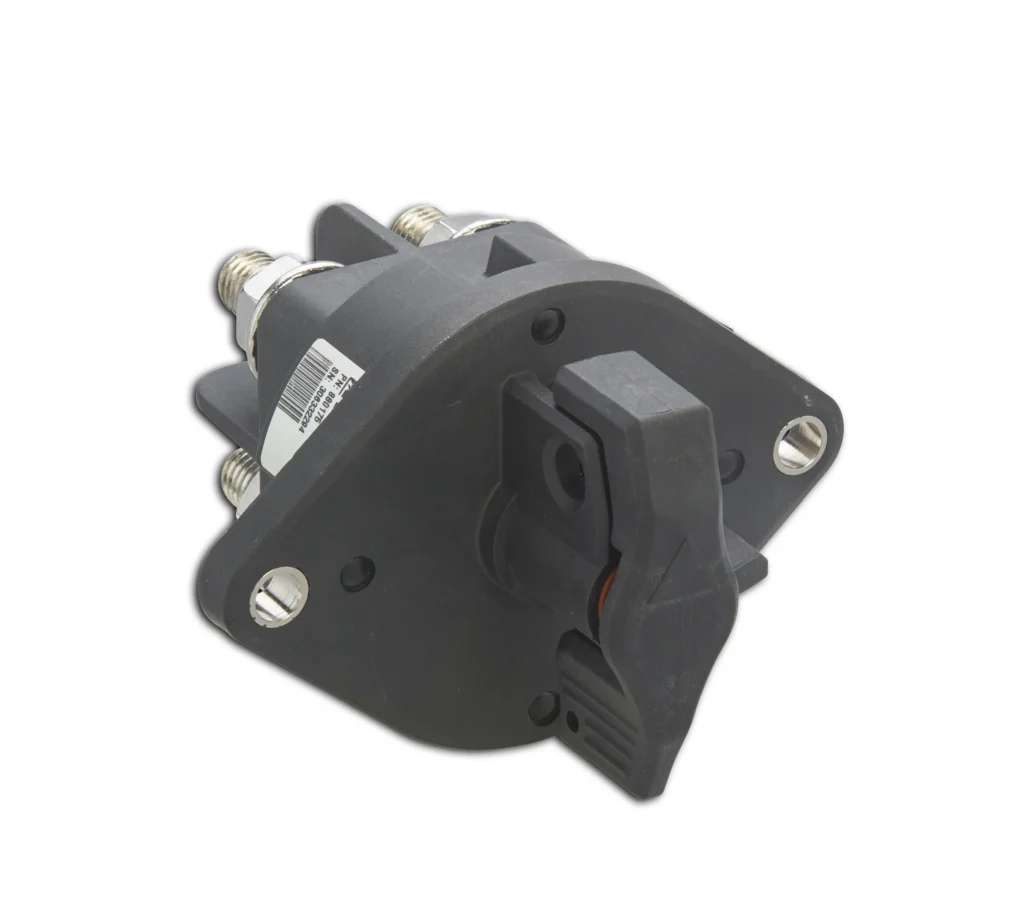

TR Dual Pole Heavy Duty Battery Master Switch Black Handle

Efficiently manage two independent battery banks with this high-capacity dual-circuit disconnect switch, featuring a robust design that allows for simultaneous isolation or activation of both systems. Its heavy-duty, weather-resistant construction ensures reliable power control and maximum safety in demanding marine and commercial vehicle environments.

Features

• 2 x Battery studs 3/8”-24
• Built-in lock-out / tag-out
• Terminal stud size: M12 x 25mm.
• Temperature range: -50° to 85°C, DC-Rated to 105°C
• Shock: 30G, Vibration: 8G
• IP67 waterproof and dust proof; switch can be mounted in exposed locations

Specifications

• Voltage: 6V-48V Multivoltage
• Amperage: 500A Continuous, with 2 x 4/0 input and 2 x 4/0 output cables
• Dimensions: H 85 x D 103 × W x 120
• Approvals: IP69K, IP67 Rated
• Configuration: DPST
• Modes: On/Off
• Series: 880175 Series
• Application: Heavy Duty, Mining
