DOUBLE POLE SERIES

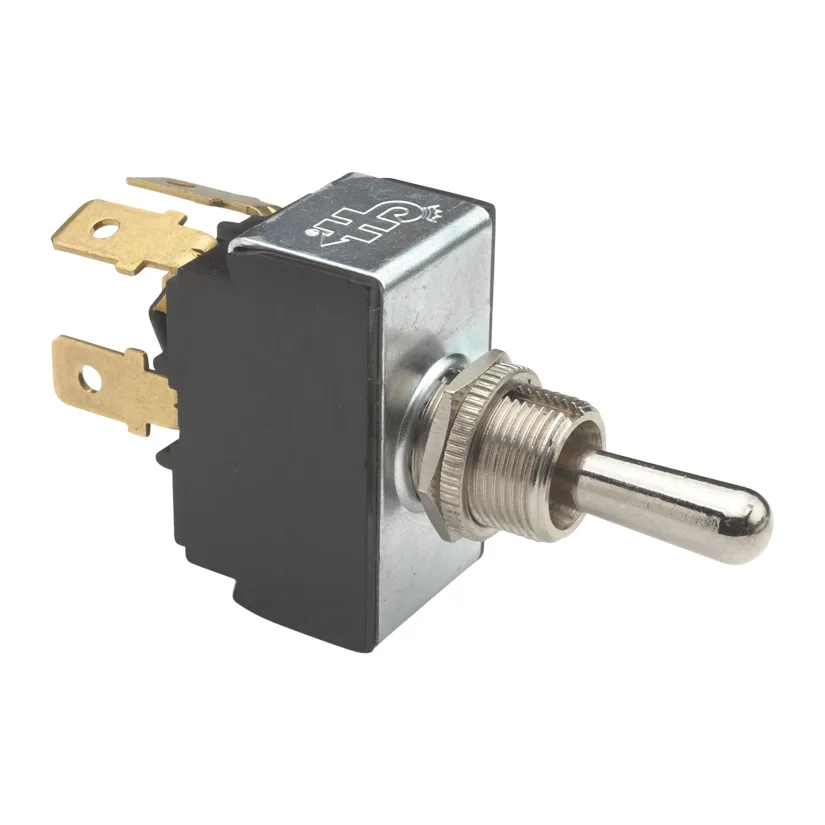

Toggle Switch DPDT Mom On/Off/Mom On Bridged Reversing

Designed for heavy industrial loads, this DPDT (Mom On-Off-Mom On) series provides dual-pole control with momentary action in both directions, ensuring precise, temporary engagement of high-torque motors.

Features

• DPDT Mom On/Off/Mom On Bridged Rev
• For changing direction of permanent magnet electric motors: fans, booms, conveyors
• Reversing polarity, change over ON bridged
• 4 Blade terminals, silver contacts
• Stem: thread 15/32-32, L 12mm, D 12mm
• Panel thickness: 6.35mm, Handle:17mm
• Toggles Reversing Polarity

Specifications

• Voltage: 12/24V Dual Voltage
• Amperage: 25A@12V, 12A@24V
• Dimensions: H 34 x D 69 x W 19
• Configuration: DPDT
• Modes: Mom On/Off/Mon On
• Series: 55046 Series
