SINGLE POLE SERIES

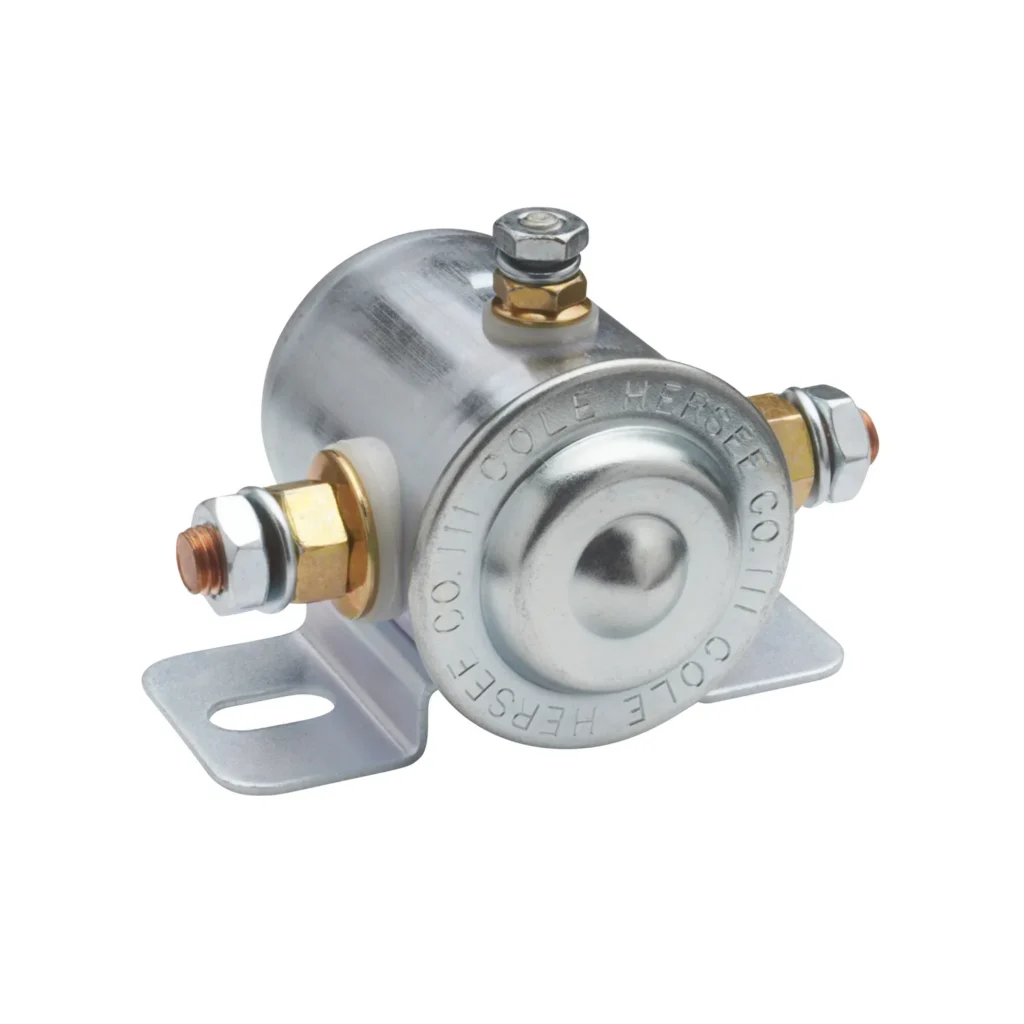

SPST 12V GND Intermittent Duty Solenoid

Built for heavy-duty power demands, the 24037 series provides superior circuit isolation for high-amperage intermittent loads like winch motors and hydraulic pumps. Its reinforced internal contact structure and 200A capacity ensure reliable starting power in demanding commercial and industrial electrical systems.

Features

• Intermittent Duty Solenoid SPST
• 3 stud, Grounded stud earth
• SPST Normally open (one circuit) OFF/ON
• Copper Stud terminals 5/16″-24
• Internal grounded, Coil terminals 10-32
• Plated steel housing, nuts & washers Inc.
• Mounting holes 8mm x 15mm, 56mm CTC
• Mount with brand cap facing DOWN
• Int. ratings: 10 sec ON, 20 min OFF

Specifications

• Voltage: 12 Volt
• Amperage: 750A make, 100A break, 4.4 ohm
• Dimensions: H 60 x D 64 x W 84
• Configuration: SPST
• Modes: Intermittent Duty
• Series: 24037 Series
