SINGLE POLE SERIES

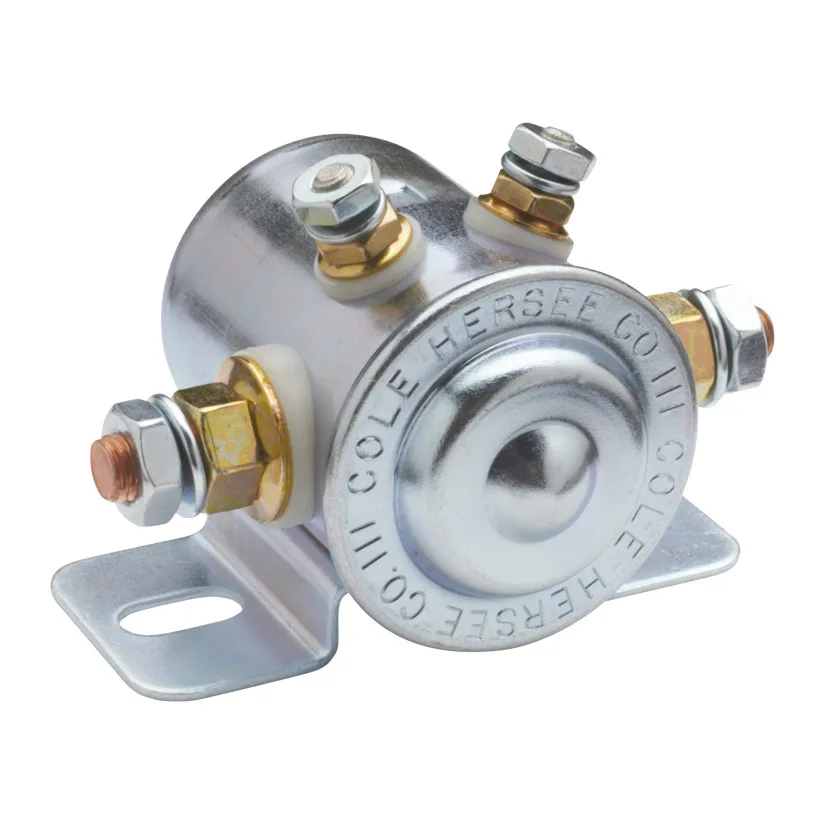

SPST 12V 85A Continuous Duty Solenoid

Designed for heavy-duty 24V DC systems, the 24059 series solenoid features an insulated coil for versatile grounding and safe circuit management in multi-battery configurations. Its robust construction and plated steel finish make it the definitive choice for long-term reliability in commercial trucking and emergency vehicle power distribution.

Features

• Continuous Duty Solenoid SPST 12V 85A
• 4 stud, Insulated stud earth
• SPST Normally open (one circuit) OFF/ON
• Copper Stud terminals 5/16″-24
• Insulated Coil terminals 10-32
• Plated steel housing, nuts & washers Inc.
• Mounting holes 8mm x 15mm, 56mm CTC
• Int. ratings: 10 sec ON, 30 min OFF

Specifications

• Voltage: 12 Volt
• Amperage: 85A Continuous, 750A Make, 100A Break, 17.5 ohm
• Dimensions: H 60 x D 64 x W 84
• Configuration: SPST
• Modes: Continuous Duty
• Series: 24059 Series
