SINGLE POLE SERIES

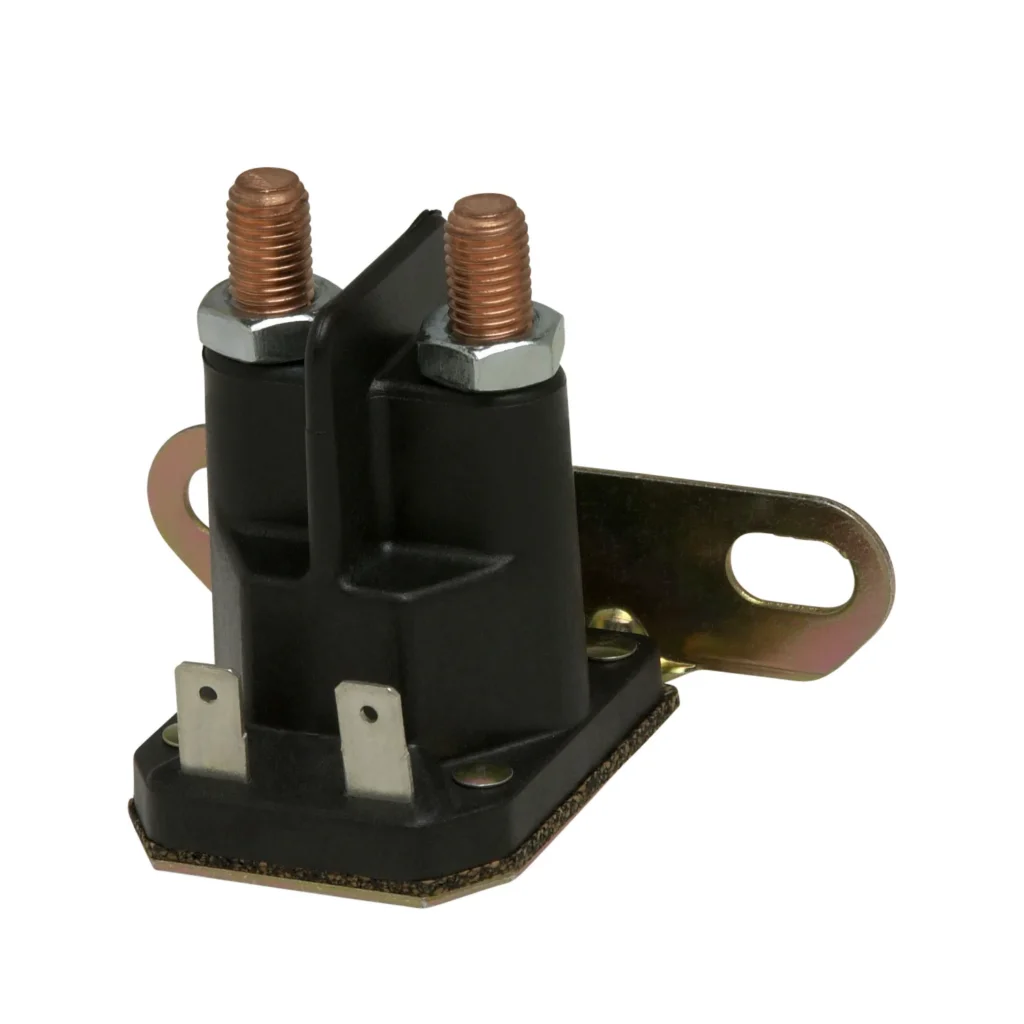

SPST 12V 100A Continuous Nylon Solenoid

The 24612 series provides uncompromising 12V power distribution with a focus on high-amperage continuity and thermal stability. Its rugged plated-steel design and insulated circuitry make it a staple for heavy-duty vehicle power grids, ensuring consistent performance for systems that require sustained electrical engagement.

Features

• SPST Normally open (one circuit) Off/On
• 4 Stud, Copper Stud terminals 5/16”-24
• Insulated coil terminal 10-32
• Gloss black nylon housing, L bracket
• Plated steel nuts and washers included
• Mounting holes 8mm x 15mm, 56mm CTC
• Int. ratings: 10 sec On, 30 min Off

Specifications

• Voltage: 12 Volt
• Amperage: 100A Continuous, 400A Inrush, 100A Make and Break, 16 ohm
• Dimensions: H 65 x D 47 x W 76
• Configuration: SPST
• Modes: Continuous Duty
• Series: 24612 Series
