SINGLE POLE SERIES

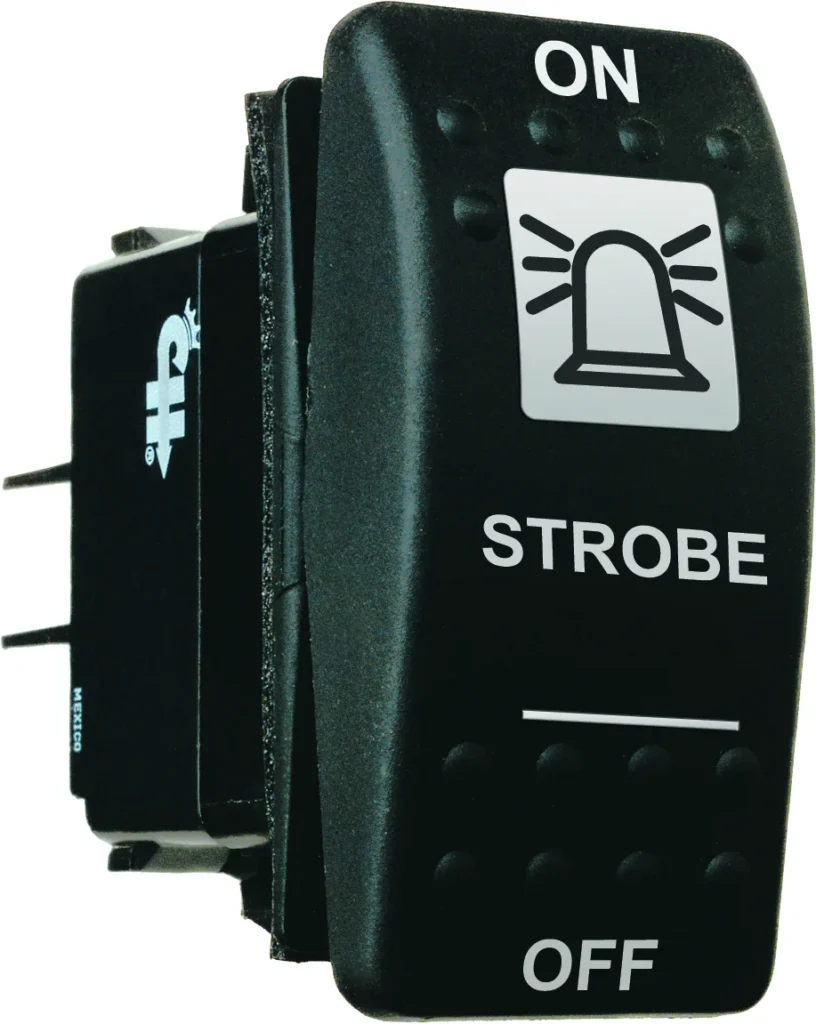

Sealed Rocker Switch with Incandescent Pilot Light

Illuminate your control panel with the 58326 series professional-grade rocker switch. Engineered to thrive in the demanding environments of heavy-duty vehicles and marine vessels, this switch features an integrated pilot light that provides clear, high-visibility status at a glance. Its rugged, snap-in design and high-current capacity make it the definitive choice for managing auxiliary power, specialized equipment, and safety systems where reliability and operator awareness are paramount.

Features

• SPST On/Off Symbol Independent
• Imprinted text with symbol on illuminated white lens
• Independent illumination
• Sealed, blade terminals, silver contacts
• Nylon wide bezel, snap in mounting
• Fits panels 2.35mm – 4.73mm
• Panel hole: W 21.1mm, H 36.8mm

Specifications

• Voltage: 12 Volt
• Amperage: 20A@12V, 10A@24V
• Dimensions: H 49 x D 39 x W 24
• Configuration: SPST
• Modes: On/Off
• Series: 58326 Series
• Application: Independent Illumination
