SINGLE POLE SERIES

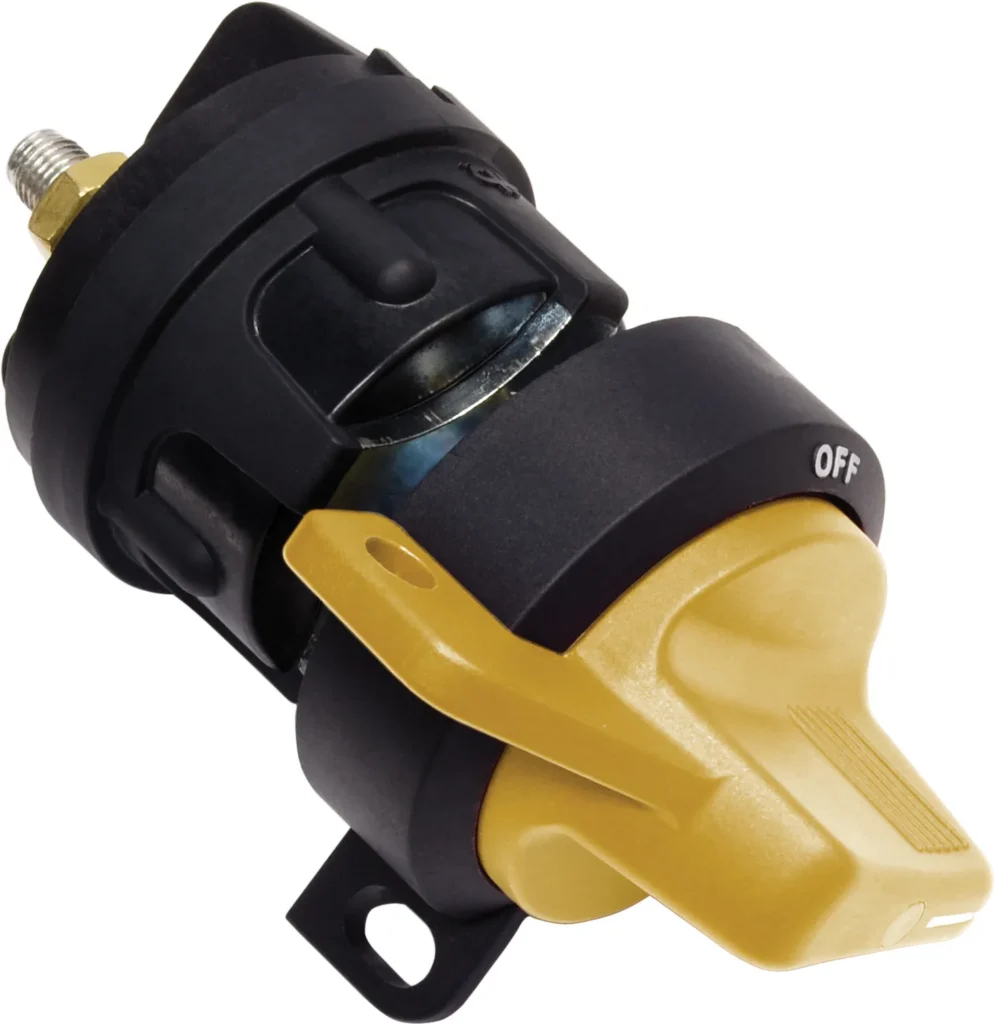

Master Battery Disconnect Switch SPST On/Off

Designed for advanced power management, these versatile battery selector switches allow for seamless switching between multiple battery banks or total system isolation. Their heavy-duty construction and positive-detent tactile feedback ensure secure electrical routing for marine and multi-battery vehicle applications.

Features

• Battery Master Switch SPST On/Off
• Silver laminated contacts, Weather resistant, IP68
• Strong black ABS body, Built-in security locking
• Indexing pin aligns switch and prevents rotation
• O-ring seal on mounting shaft
• Battery 2x studs 3/8″-24
• Mounting stem 3/4″-16 thread, L 22mm
• Suits panel thickness 12mm
• Approvals: IP68, SAE, J1455

Specifications

• Voltage: 6V-36V Multivoltage
• Amperage: 300A Continuous, 1000A to 3000A Intermittent
• Dimensions: H 136 x D 86 x W 70
• Approvals: IP67 Rated, SAE J1455
• Configuration: SPST
• Modes: On/Off
• Series: 75920 Series
• Application: Heavy Duty, Mining
