DOUBLE POLE SERIES

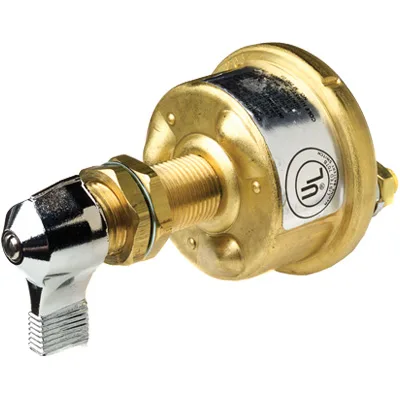

Marine Battery Master Switch DPST On/Off

Engineered for the most demanding 12V environments, this rugged metal-body master disconnect switch provides a reliable safety cut-off and prevents parasitic battery drain. Its heavy-duty lever action and weather-resistant construction make it the professional standard for protecting the electrical systems of commercial vehicles and heavy equipment.

Features

• Silver laminating contacts
• Brass case
• Field term 20A continuous
• 2 stud terminals 10-32
• Mounting stem 3/4″-24 thread
• Mounting stem length 46mm
• Suits panel thickness up to 23mm
• UL rating 707B

Specifications

• Voltage: 6V-36V Multivoltage
• Amperage: 125A Continuous, 800A Intermittent, Small: 20A Cont
• Dimensions: H 122 x D 67
• Configuration: DPST
• Modes: On/Off
• Series: M290 Series
• Application: Heavy Duty, Marine
