SINGLE POLE SERIES

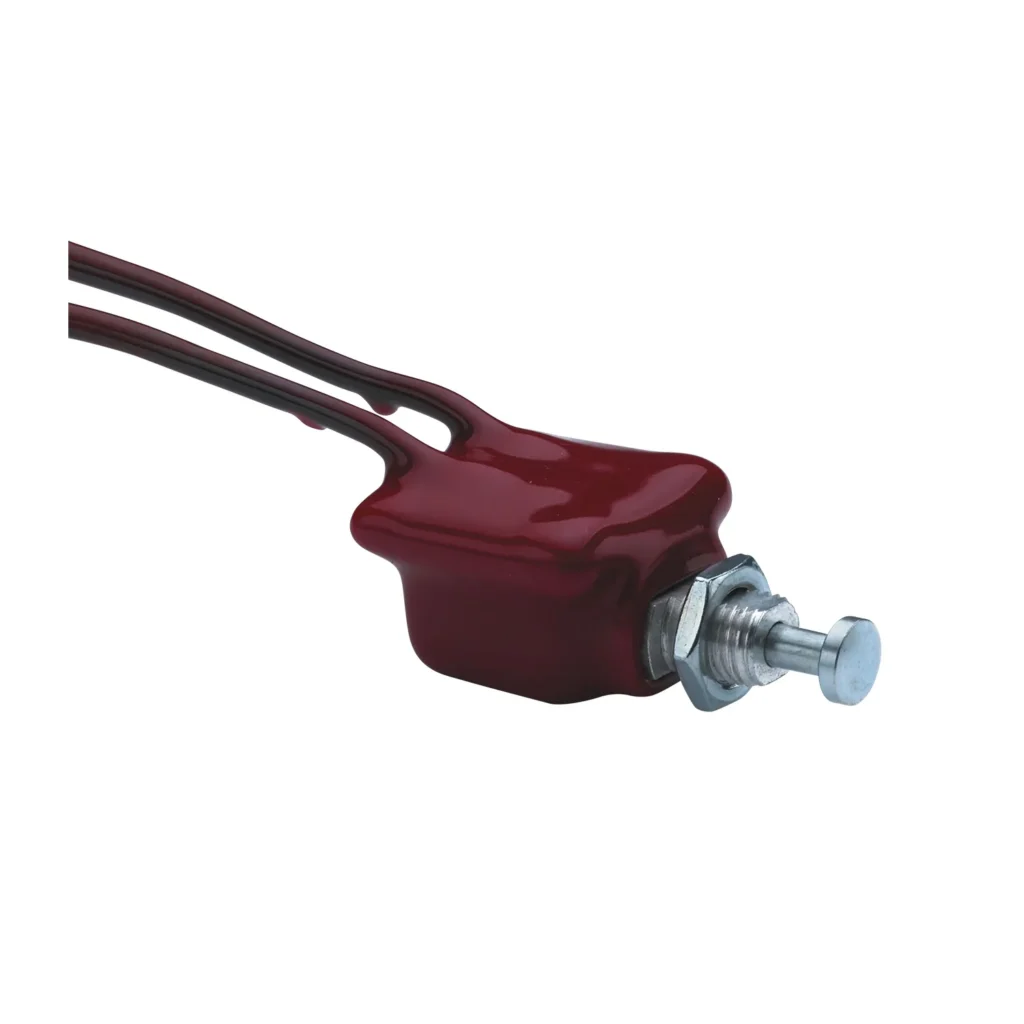

Light Duty Push-Button Door Momentary Switch

Built for industrial-strength performance, the 91126 series pushbutton switch delivers professional-grade reliability in a compact, ruggedized package. Featuring a chrome-plated brass face and a high-torque mechanical action, this switch is engineered to thrive in high-vibration environments. It is the dependable choice for engine starting, horn activation, and auxiliary signaling in heavy trucks, construction equipment, and marine vessels.

Features

• Terminals: Two Wire Lead (7')
• Sealing: PVC Sealed
• Normal position: Normally Closed
• PVC-coated body for moisture and dirt protection
• Two 7" (177.8mm) wire leads
• Mounting stem: 7/16"-20 thread, .44" (11.2mm) long
• Steel button, .38" (9.7mm) diameter

Specifications

• Voltage: 12 Volt
• Amperage: 10A@12V
• Configuration: SPST
• Series: 91126 Series
