DOUBLE POLE SERIES

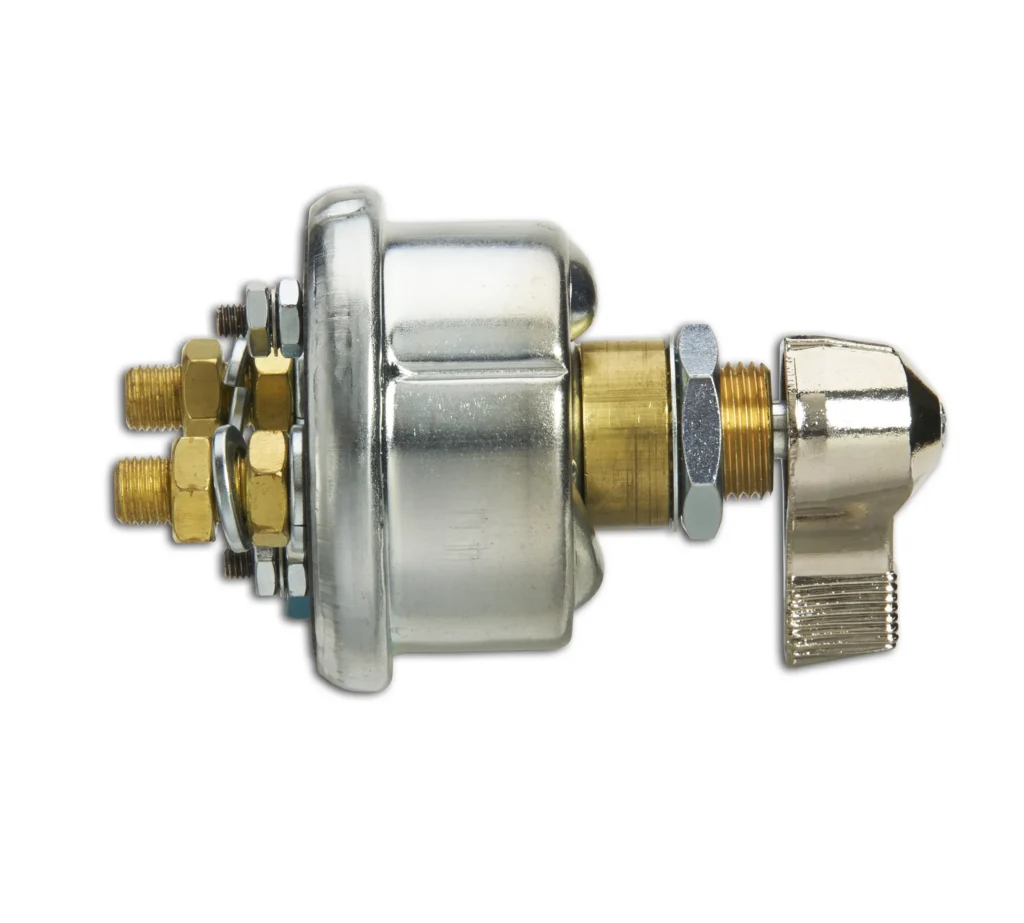

Battery and Field Master Switch DPST On/Off

These compact, high-current disconnect switches offer a streamlined solution for emergency power shut-off in demanding industrial and commercial environments. Built with weather-resistant seals and robust internal contacts, they deliver consistent performance and long-term durability in exposed mounting locations.

Features

• DPST, Silver contacts, chrome lever
• Accepts padlocks up to 6mm diameter
• Weather resistant, O-ring sealed
• Field terminals 20A continuous
• 2 x Field stud 10-32
• 2 x Battery stud 3/8”-24
• Mounting stem 3/4”-24 thread, L 13mm
• Suits panel thickness to 6.5mm
• Indexing pin aligns switch and prevents rotation

Specifications

• Voltage: 6V-36V Multivoltage
• Amperage: 1000A Intermittent, 125A Continuous, Small: 20A Cont
• Dimensions: H 110 x Ø 67
• Configuration: DPST
• Modes: ON/OFF
• Series: 75910 Series
• Application: Heavy Duty, Mining
