DOUBLE POLE SERIES

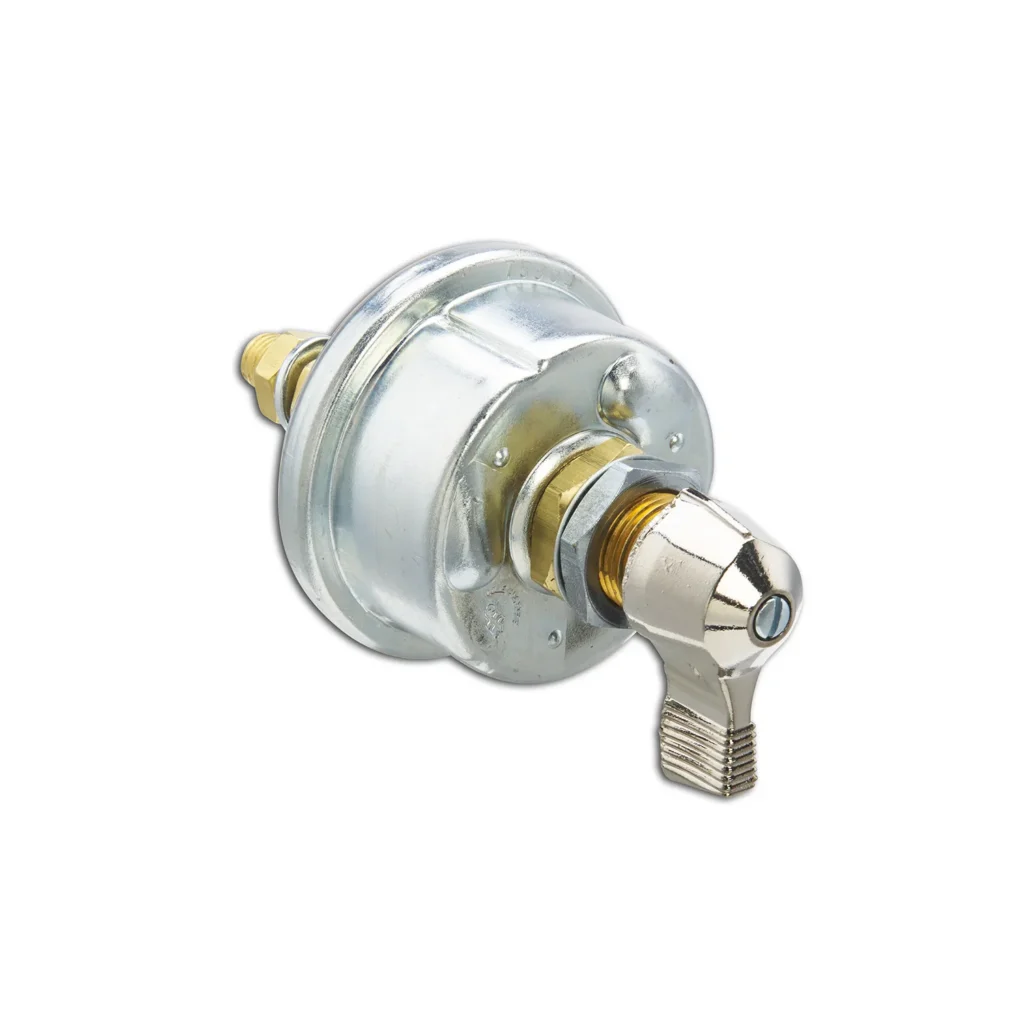

Battery and Field Master Switch DPST On/Off

Designed for heavy-duty circuit protection, these high-capacity master disconnect switches provide reliable power cut-off for large vehicle electrical systems. Their rugged metal housing and high-amperage ratings make them the industry standard for preventing battery drain and ensuring safety during vehicle maintenance.

Features

• Battery and Field Master Lever Switching
• Silver contacts, chrome lever
• Weather resistant, O-ring sealed
• Field terminals 20A continuous
• 2 x Field stud 10-32
• 2 x Battery stud 3/8”-24
• Mounting stem 3/4”-24 thread, L 13mm
• Suits panel thickness to 6.5mm

Specifications

• Voltage: 6V-36V Multivoltage
• Amperage: 1000A Intermittent, 125A Continuous, Small: 20A Cont
• Dimensions: H 91 x Ø 67
• Configuration: DPST
• Modes: ON/OFF
• Series: 75904 Series
• Application: Heavy Duty, Mining
