KEYLOCK SWITCHES

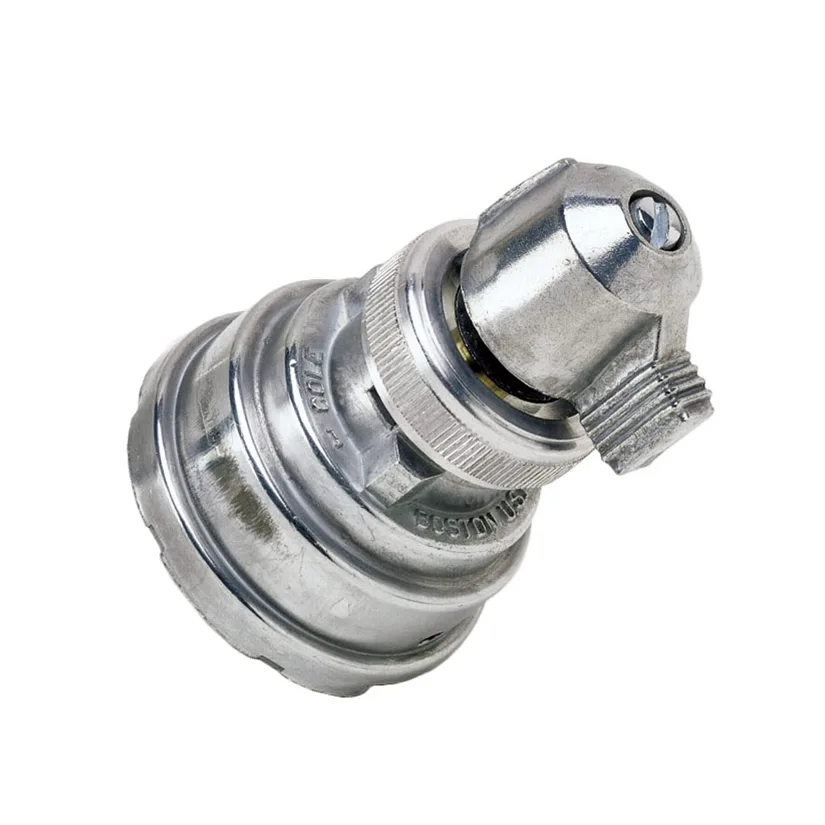

Anti-restart Ignition Switch Off/Ign/Start

Engineered for the most demanding commercial and industrial dashboards, the 956-3124 series delivers extra heavy-duty performance in a compact footprint. Its rugged die-cast metal housing and high-torque short-lever design provide a superior mechanical feel and enhanced durability, ensuring a professional-grade ignition solution for heavy trucks, buses, and construction machinery.

Features

• 3 Position Off/Ign/Start
• 5 Screw terminals
• O-ring sealed housing
• Copper contacts
• Will not restart unless returned to Off position
• Lever actuator
• Mounting Stem 1"-24 bush
• Panel thickness 0.76mm to 2.85mm
• Diameter 25mm

Specifications

• Voltage: 12 Volt
• Amperage: 10A@12V Accessory, 10A@12V ignition/Run, 5A@12V start
• Modes: Off/Ign/Start
• Series: 956-312 Series
