KEYLOCK SWITCHES

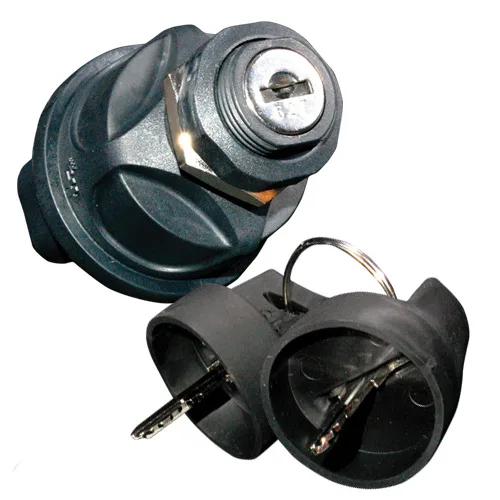

Anti-Restart 4 Position Sealed Ignition Switch

Engineered for ultimate survival in extreme environments, the 95060 series is the industry’s premier fully sealed ignition switch. With an IP67-rated housing that is impervious to water, salt, and dirt, these switches deliver fail-safe performance for heavy construction equipment, marine vessels, and agricultural machinery that must operate in the most punishing conditions on earth.

Features

• Anti-restart 4 Position Sealed Ignition Switch
• Engineered thermoplastic, OEM quality
• Fully sealed O-ring and ultrasonic welding
• Integral Deutsch connector, IP67
• Selectable switching and key options
• Multiple key codes or keyed alike option
• Supplied with 2 matching keys inc boots
• Plastic facenut and nickel plated back nut
• Key removable only in OFF position
• Spring return to IGN/ACC position
• Ideal for agricultural, earthmoving and mining

Specifications

• Voltage: 6V-24V Multivoltage
• Amperage: 10A@12V, 5A@24V, 10A sealed connector
• Dimensions: H 72 x Ø 51
• Approvals: IP67 Rated
• Modes: Acc/Off/Ign/Start (anti-restart)
• Series: 95060 Series
• Application: Heavy Duty, Marine, Key Start
